Traffic signal light is a kind of traffic light used to direct vehicles and pedestrians to pass safely at road intersections. Solar road stud is a kind of traffic safety equipment installed on the road to ensure the safe driving of vehicles at night and in bad weather.
According to the light source, the light color of solar road stud can be divided into red, yellow, white and green. The red light and green light of the solar road stud are displayed according to different occasions.
For example, the red light on the left and green light of solar road stud on the right in the traffic lane (applicable to China and other countries in area B, but opposite to area a). Yellow light of solar road stud is a special solar road stud light signal, which is mainly due to its strong penetration.
Solar road stud products in line with relevant international standards are composed of super bright LED. The visible distance of the solar road stud can reach 1km, no matter which direction is visible light. Drivers can judge the meaning of solar road stud signal according to the different flashing cycle, frequency and lighting time of solar road stud, so as to drive safely.

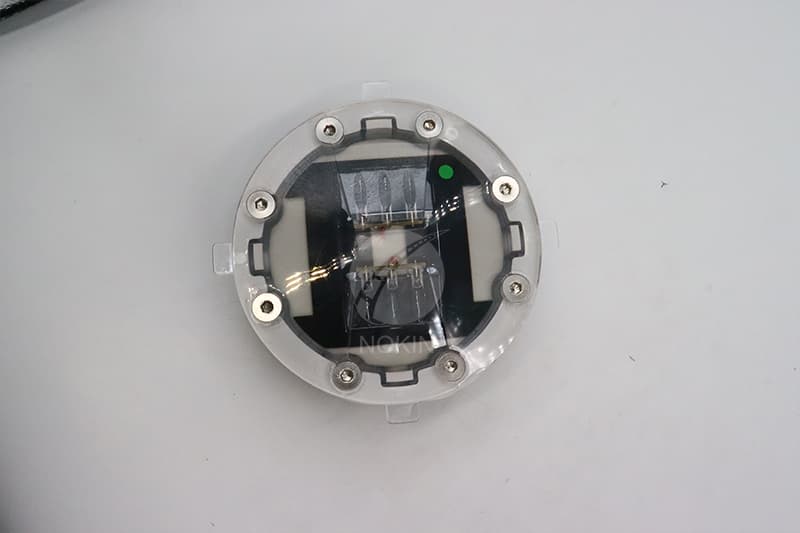

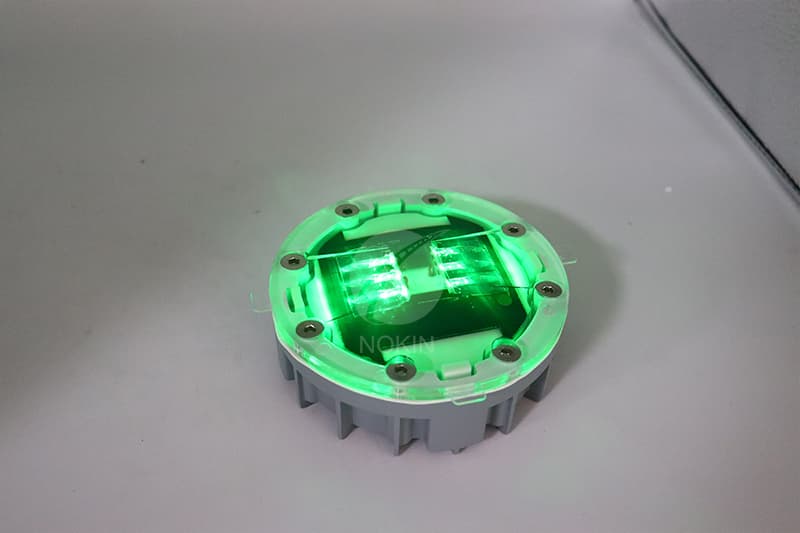

This solar road stud model with a visual distance of 800m is solar road stud NK-RS-K1, which meets the relevant international standards. The solar road stud NK-RS-K1 product is composed of 8 super bright LEDs with a visible distance of 800m. The solar road stud NK-RS-K1 is visible light in any direction.
Body material: Aluminum(GB-ADC12)+PC(Japan Brand)
Power supply: USA Brand High Efficient Solar Panel
Battery: NI-MH1.2V/600MAH; Lithium battery3.2V/500MAH(Made in Japan);
Resistance: >30T
LED Color: White, Yellow, Blue, Red, Green
Size: L125mm*W107mm*H26+50mm
Body material: Casting Aluminium alloy +PC
Power supply: 5V/80MAH Mono crystalline silicon
Battery: Lithium battery3.2V/1000MAH
Resistance: >40T(can be installed in the middle of road)
LED Color: White, Yellow, Blue, Red, Green
Size: φ125*50mm
Body material: PC
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NIMH 600MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: φ117*23mm
Body material: PC
Power supply: High efficient solar panel(5V/60mA)
Battery: Lithium battery(3.2V/500mAh)
Resistance: 15T
LED Color: White, Yellow, Blue, Red, Green
Size: 114*90*11mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH or lithium battery
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104*W104*H20mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/800MAH
Resistance: >20 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: L123*W133*H22mm+55mm
Body material: Aluminum Alloy+PC cover
Power supply: Solar panel(Monocrystalline 2.5V /120MA)
Battery: Lithium battery 1000MAH*3.2V
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф123*45mm
Body material: Cast Aluminum
Power supply: Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >30 Tons
LED Color: White, Yellow, Blue, Red, Green
Size: Ф120*50mm（bottom）
Ф135*50mm（upper）
Body material: Heavy duty casting aluminium
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L129*W114*H23mm+53mm
Body material: Aluminum+PC
Power supply: Mono crystalline solar panel
Battery: NI-MH 1.2V/ 600mah(high temperature resistance);
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: 125*43*30mm
Body material: Tempered Glass/PC
Power supply: USA Brand High Efficient Solar Panel
Solar panel(Monocrystalline 2.5V /0.2W)
Battery: NI-MH1.2V/600MAH(high temperature resistance, made in China)
Lithum battery3.2V/500MAH(made in Japan)
Resistance: >20T
LED Color: White, Yellow, Blue, Red, Green
Size: φ112*56mm
Body material: Hi-pressure Casting Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Battery: NI-MH 1.2V/800MAH
Resistance: >20T(static)
LED Color: White, Yellow, Blue, Red, Green
Size: L104mm*W94mm*H20mm
