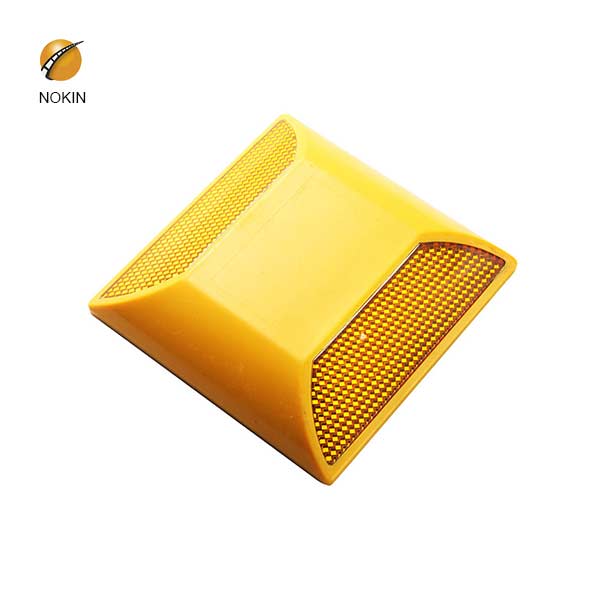

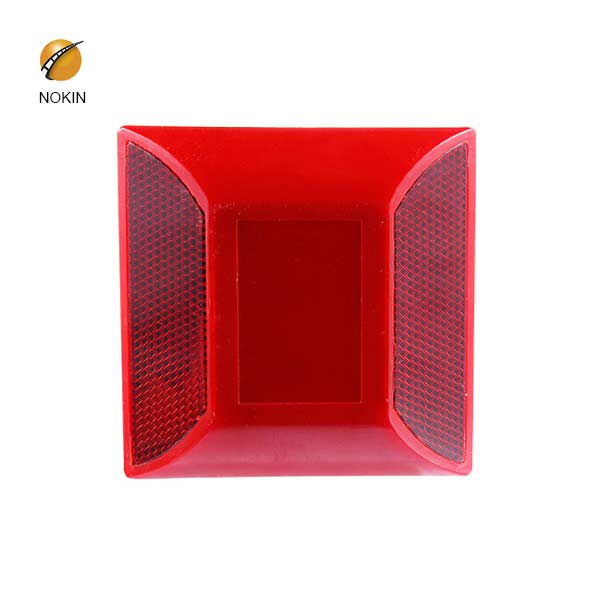

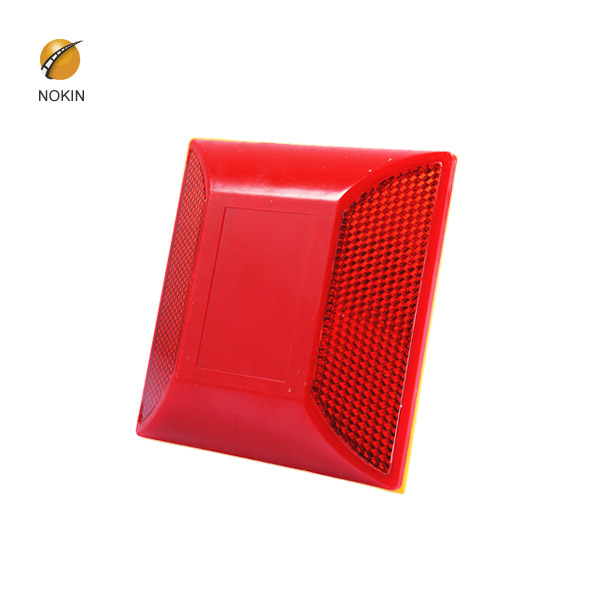

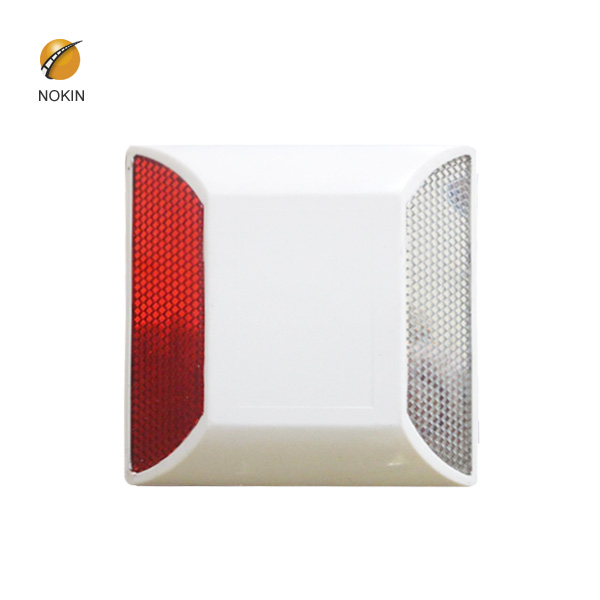

Amber Raised Reflective Pavement Markers On Road NK-1002

Body material: ABS
Filling: Epoxy+Quartz
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 100*100*20mm

Share with:

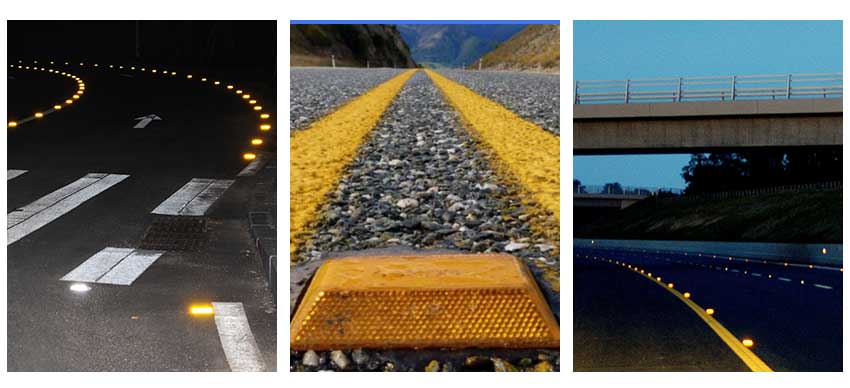

Raised pavement marker are safety devices used on roads. These devices are usually made of plastics, ceramics, thermoplastic coatings or occasionally metal, and come in a variety of shapes and colors. Amber pavement marker include lenses or reflective sheets, which enhance visibility by reflecting automobile headlights. Some other names for specific types of raised pavement markers include convex vibration lines, Botts’ dots, contour lines, cat’s eyes, road studs or road turtles. Sometimes they are simply referred to as “reflectors”.




Reflective road studs are one of raised pavement markers. Amber raised reflective pavement markers on road is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.


The specifications of reflective pavement markers :

Color Red, Yellow, Green, Blue, White
Lens Material PMMA
Body Material Plastic
Filling Epoxy+Quartz Sand
Size 100*100*20mm
Temperature -40~60°C
Load capacity 5 T


Whats the different color amber reflective studs mean on the motorway?


Red studs- mark the left edge of the road.

White studs- mark the lanes or the middle of the road.

Amber studs- mark the central reservation of a dual carriageway or motorway.

Green studs- mark the edge of the main carriageway at lay-bys and slip roads

Green/yellow- studs indicate temporary adjustments to lane layouts, e.g. where road works are taking place.
